Macchina idraulica per stampaggio a caldo in foglio di incisione manuale carta di cuoio macchina di legno macchina di stampa a caldo macchina di stampa a caldo lettere stampaggio a caldo in foglio
Macchina manuale per la lavorazione del legno con carta di pelle
,Macchina per la rifrazione manuale di carta di pelle per legno

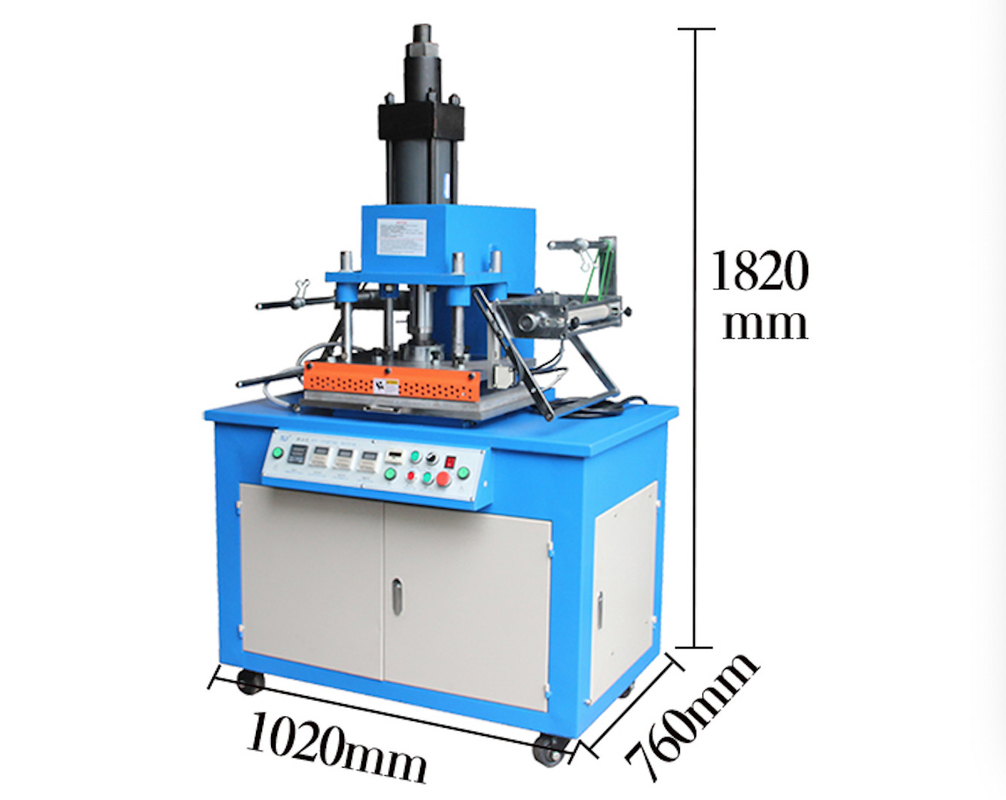

Hot foil Stamping Machine
Descripe:
This machine the fuselage adopt stainless steel material, equipment parts are premium brands for the domestic and abroad, stable performance, long service life;Adopt novel design idea and advanced manufacturing technology, which makes structure of machine more reasonable and perfect.
Features:
1.High pressure suit for big size hot stamping
2.Automatic foil feeding
3.Hydraulic
4.Photocell protection
5.embossing and relief effect
Parameters:
|
Model
|
HGP-300
|
HGP-350
|
|
Gilding area
|
300*400mm
|
350*500mm
|
|
Bronzing pressure
|
3.4T
|
15T
|
|
Gilding speed
|
8times/min
|
|
|
weight
|
400KG
|
500KG
|
|
Voltage
|
380v 50-60hz
|
|
|
Machine size
|
870*710*1640mm
|
1020*760*1820mm
|
|
Power
|
2KW
|
2.5kw
|
|
Pressure pressure
|
1-7mpa
|
1-10mpa
|
Company Profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.
FAQ
We are based in Shanghai, China, start from 2008, sell to South America ,South Asia ,Mid East,Eastern Europe(,Southeast Asia,North America,Southern Europe. There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Delivery Terms: FOB, CFR, CIF,EXW,CIP,Express Delivery；
Payment Currency: USD,EUR,JPY,CAD
Payment Type: T/T,L/C,MoneyGram,Credit Card;
Language Spoken:English,Chinese
-
La tagliatrice di qualità superiore del laser di versione 400w 600w 800w per muore creatore del bordo
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
La tagliatrice del laser 1000W/1500W/2200W digiuna generatore di flusso per muore fabbricazione del bordo
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Piegatrice automatica completamente automatica con la dentellatura tagliente di piegamento e la riga in acciaio di For 1.5/2/3pt del modello di Lipping 910C
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Tagliatrice di carta idraulica precisa dell'unità di stampa di Digital/stampa del grafico
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
